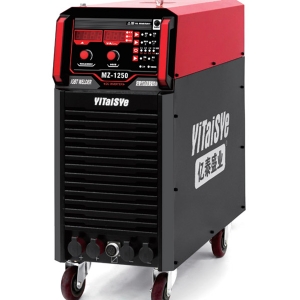

Click the picture to view the original image
Adopt advanced IGBT soft switch inverter technology;
Arc current, thrust current continuous adjustable, stable welding, beautiful weld forming, welding carbon steel, stainless steel, heat-resistant steel and composite steel plate;
The arc starting mode of submerged arc welding is compatible with scratching and drawing, and the success rate of arc starting is high.
The welding trolley is easy to operate, and the wire feeding device is driven by two wheels. The elastic wire pressing ensures the wire feeding is stable and reliable.
Automatic pull back arc circuit;
Perfect protection circuit;
The lone pressure compensation function makes the welding in a better state.
Constant current output, stable arc, more guaranteed welding quality;
Multi - function manual arc welding, submerged arc welding, carbon arc gouging.
| Product model | MZ-630 | MZ-1000 | MZ-1250 |
| Input power | AC380V±15%/50HZ | AC380V±15%/50HZ | AC380V±15%/50HZ |
| Rated input capacity | 35.8KVA | 55KVA | 60KVA |
| Rated input current | 70A | 83A | 94A |
| Output no-load voltage | Submerged arc welding 90 ± 10 / manual arc welding 70 ± 5 | Submerged arc welding 90 ± 10 / manual arc welding 70 ± 5 | Submerged arc welding 90 ± 10 / manual arc welding 70 ± 5 |
| Rated load duration | 100% | 100% | 100% |
| Current regulation range | 60-630A | 60-1000A | 60-1250A |
| Voltage regulation range | 20-50V | 20-50V | 20-50V |
| power factor | ≥0.88 | ≥0. 88 | ≥0.88 |
| welding wire | 2-4mm | 2-6mm | 2-6mm |
| Enclosure protection class | IP21S | IP21S | IP21S |
| Overall dimension | 628 x330565mm | 775x550810mm | 775x550810mm |
| weight | 51.2Kg | 85Kg | 95.5Kg |
