YDM Industrial Grade 4030 Flatbed Printer

Area: China Shandong
Validity: forever
Information of the company

Product Parameters

Product Name:  YDM Industrial grade 4030 flatbed printer

Print Technology
Printer Model 4030 UV Printer
Max. Print size 4000*3000mm
Print head model Toshiba CE4M,Ricoh G5,G6
Qty of Printhead 4-16 pcs/2-8pcs
Print Direction Unidirectional /Bi-directional
Print head height Semi-Automatic height adjustment (option Auto)
Print head cleaning Manual cleaning system
Print resolution Toshiba CE4M4pass: 600*600 dpi
6 pass: 600*900 dpi
8 pass: 600*1200 dpi
RICOH G54 pass: 720*600 dpi
6 pass: 720*900 dpi
8 pass: 720*1200 dpi


Ink System
Ink type UV ink
Ink color CMYK/ CMYK+W/CMYK+W+V/2*CMYK+2*W+2*V
 Ink tank volume 3.5L
Ink supply Negative ink supply system
Drying type imported LED lamp curing
 White ink stirring Available
While ink circulation Available
Media type Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard & others thickness 100mm or customized


Operation Language Chinese / English
Operation system Windows XP/ Windows 7/Windows 10

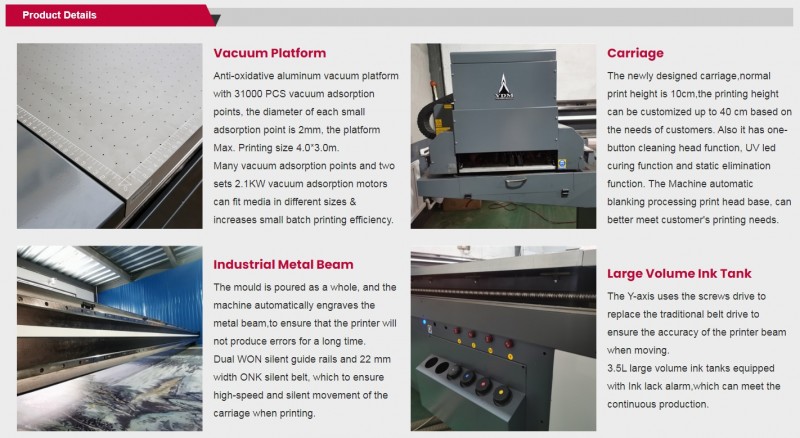

Operation platform Completed vacuum adsorption platform
Operation Environment Temperature:20℃~28℃ Humidity:40% RH~60% RH
Computer configuration System:XP,win7,win10,32/64
CPU:≥ Intel i5
Hard Disk: SATA 500G, NTFS
CD Rom: DVD recordable
Space for Disk C : ≥100 G

RIP software UnitedFancy/Printfactory( option :Photoprint)
Interface LAN
Color control Comply with ICC standards with curve and density adjustment function.
Image format TIFF,JPEG,POSTscript3,PDF
Power supply AC220V,50/60HZ
Power consumption 3.5 KW
Noise Standby < 32dB Working < 65dB
The UV lamp LED curing, 50000 hours long lifetime, water cooling
