Large height gap spray rod sprayer 3000L160HP

Brand: petros
Area: China Shandong
Validity: forever

Information of the company


Details

3000L160HPLarge height gap spray rod sprayer

sales manager:Ella,MP/wechat/whatsapp:+86-18653926025

E-mail:fanhongxi@126.com,website:www.fanhongxi.com

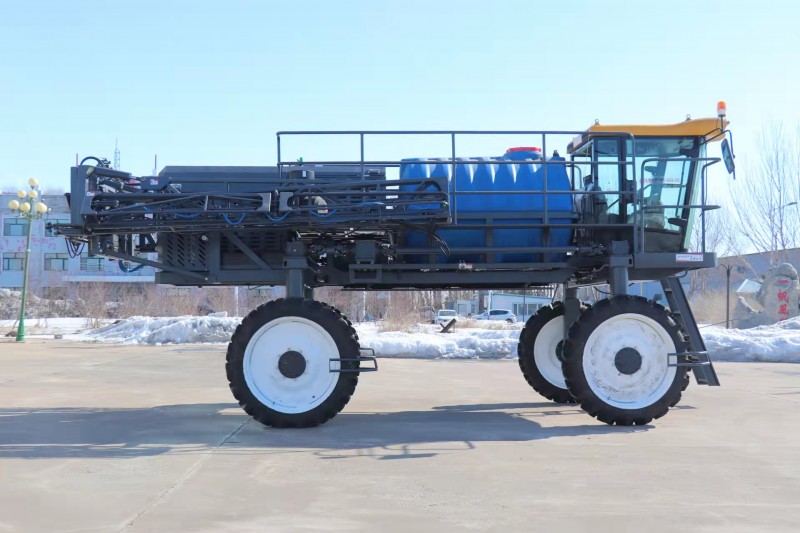

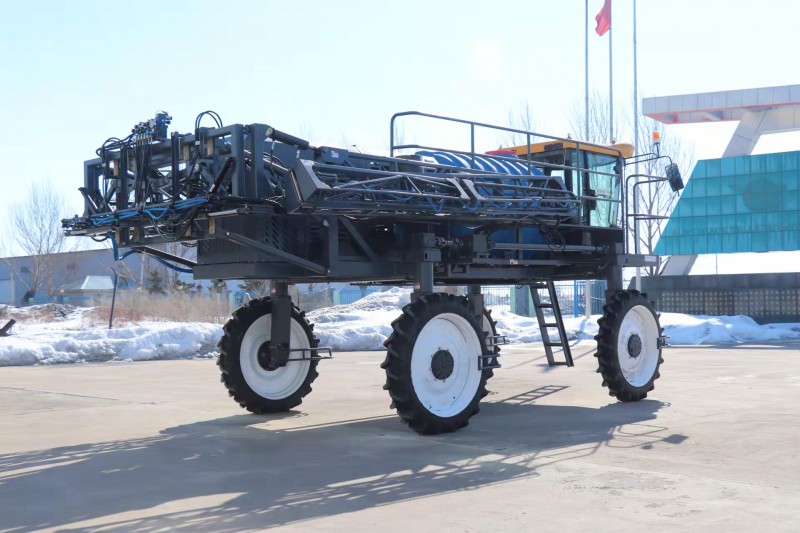

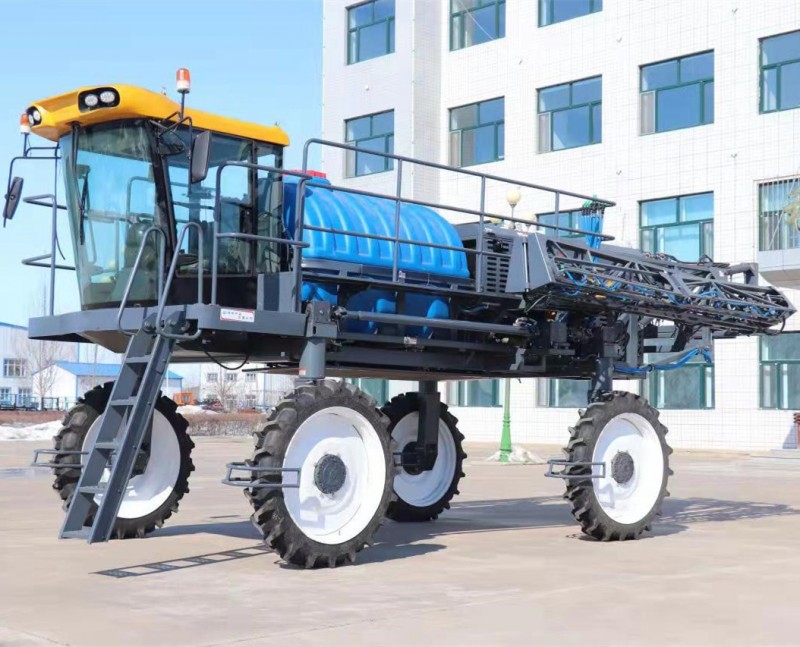

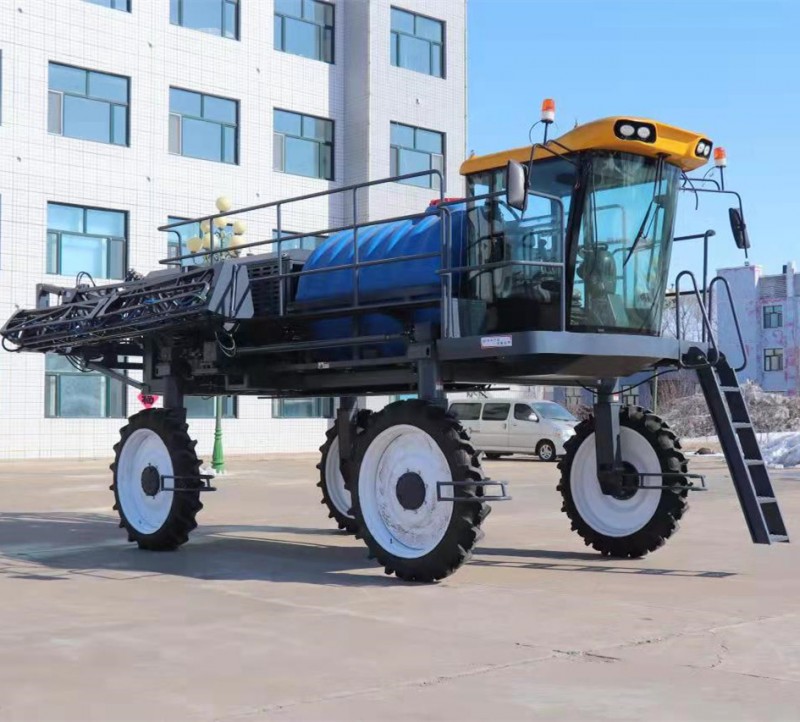

High clearance self -propelled  boom sprayer 3WPZ-3000Y


Model

3WPZ-3000Y

Liquid pump type

Diaphragm pump

Steering mode

Hydraulic assist, four-wheel steering, four-wheel drive


Liquid pump model

MB6360

Mix  mode

Jet Agitation

Liquid pump Maximum flow

360L/min

Ground clearance

1.4m

Liquid pump Maximum speed

600r/min

Wheel tread

2.6-3.2m(Customizable)

Liquid pump Pressure

3.0Mpa

Three stage filtration system

Tank filtert, Filter, spray head

Medicine box volume

3000L

System working pressure

0.3-0.5Mpa

External dimension

750039503550mm

Walking speed

30Km/h

Cleaning tank

15L

Work speed

8-18Km/h

Length of spray Rod

25m

Power/speed

118kw---2300r/min(160HP)

Spray Height

0.65-2.8m

Discharge stage

China Ⅲ Emission

Boom

Hydraulic fold and lift

Storage Battery

150Ah/12V x2

Atomization angle

110°

tire type

9.5-38

Nozzle flow

1.2L/min

driver’s cab

separate closed cab

Nozzle distance between

500-700mm(Customizable)

Inside the cab

air conditioning(Optional match precision spray)

Nozzle type

NO.3

Gear position

Stepless speed change

Weight

8000kg
