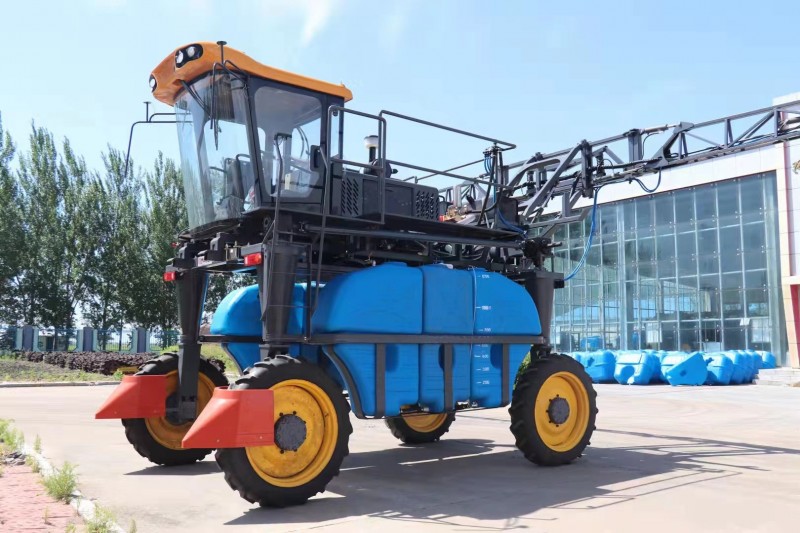

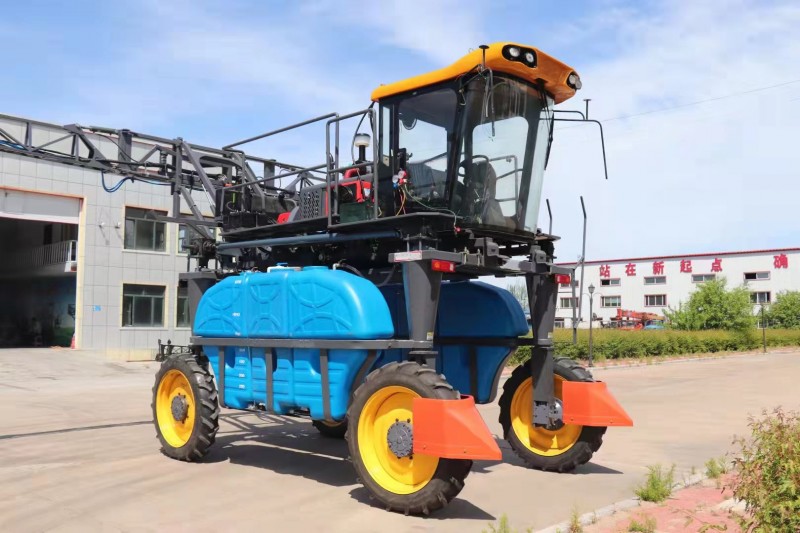

Self-propelled high gap spray rod sprayer 3WPZ-2400G

Brand: petros
Area: China Shandong
Validity: forever

Information of the company


Details

Self-propelled high gap spray rod sprayer 3WPZ-2400G


sales manager:Ella,  M/B/wechat/whatsapp:+86-18653926025

E-mail:fanhongxi@126.com

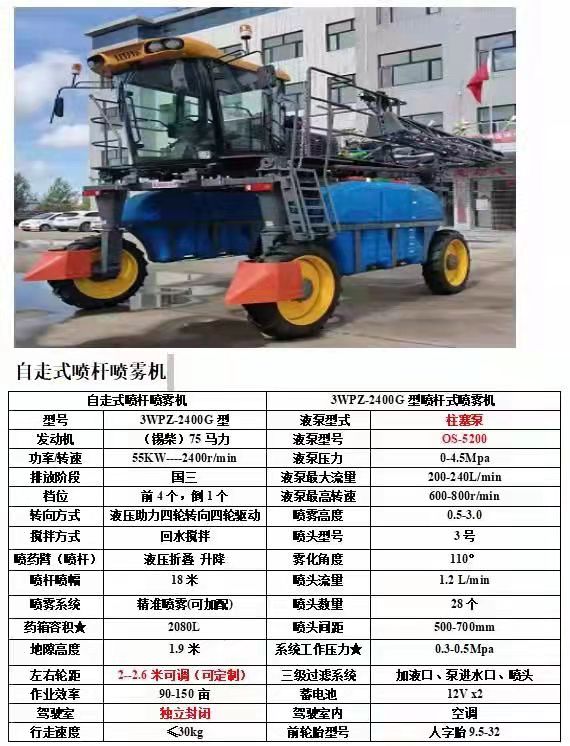

Model

3WPZ-2400G

Liquid pump type

PLUNGER pump

Engine

FAWDE 75hp


Liquid pump model

OS-5200

Power/speed

55kw---2400r/min

Liquid pump Pressure

0-4.5Mpa

Discharge stage

China Ⅲ Emission

Liquid pump Maximum flow

200-240L/min

Gear position

Four Forward  gear, one  back gear

Liquid pump Maximum speed

600-800r/min

Steering mode

Hydraulic assist, four-wheel steering, four-wheel drive

Spray Height

0.5-3.0

Mix  mode

Backwater agitation

Nozzle type

NO.3

Boom

Hydraulic fold and lift

Atomization angle

110°

Spray width

18m

Nozzle flow

1.2L/min

Spray system

Precision sprayrefillable

Number of nozzles

28

Medicine box volume

2080L

Nozzle distance between

500-700mm

Ground clearance

1.9m

System working pressure

0.3-0.5Mpa

Wheel tread

2-2.6m(Adjustable)(Customizable)

Three stage filtration system

Feeding port,Pump inlet, spray head

Work efficiency

90-150mu

Storage Battery

12V x2

driver’s cab

separate closed cab

Inside the cab

air conditioning

Walking speed

≤30Km/h

Front tire type

Herringbone fetus9.5-32
