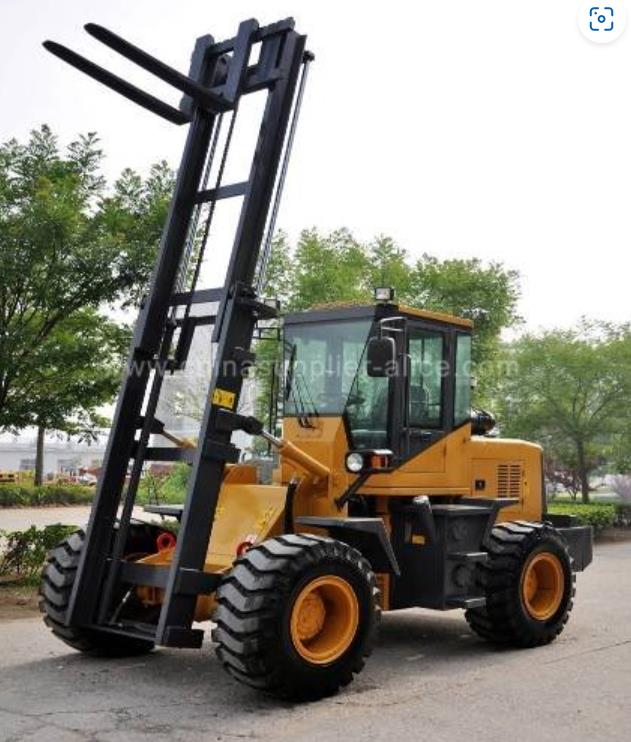

view times：913 TON OFF-ROAD FORKLIFT |
| Valid Date： |
Long term effective |
| Last update： |
2022-10-29 15:19 |
| |
 |
«Last product Next product»
|
|
Item
|
Specifications
|
Item
|
Specifications
|
|
Rated weight
|
3000kg
|
Engine model
|
YTO LR4B3-24
|
|
Center of load
|
550mm
|
Rated power
|
60kw
|
|
Operating weight
|
6300kg
|
Transmission system
|
Hydraulic-mechanical type
|
|
Max.lift height
|
4000mm
|
Highest speed
|
25km/h
|
|
Min.ground clearance
|
260mm
|
Driving axle
|
Front-rear engineering axle
|
|
Wheel base
|
1590mm
|
Turning angle
|
35°
|
|
Tread
|
2350mm
|
Tyre
|
16/70-20
|
|
Overall dimensions
|
5560×2000×3800mm
|
Steering system
|
Load sensing, prior steering
|
|
|
|
Service brake
|
Air over oil disc brake on 4 wheels
|
|
