Plywood Machine Veneer Dryer
Click the picture to view the original image
Product: Plywood Machine Veneer Dryer
Valid Date: Long term effective
Last update: 2025-03-07 13:36
  Inquiry price


«Last product    Next product»
Detailed information

Veneer dryer machine for veneer peeling and plywood production line is the key section for veneer quality,high quality veneer the essential point is drying. Sun dried veneer, it normally need to dry again and it has deformation, mildew, other quality problems. Veneer machine for veneer and plywood and wooden furniture production.

Veneer dryer machine mainly for drying peeled veneer humidity, and make the dried veneer humidity be suitable for making end products, usually the dried veneer humidity about 5-14% according to each clients requirements.

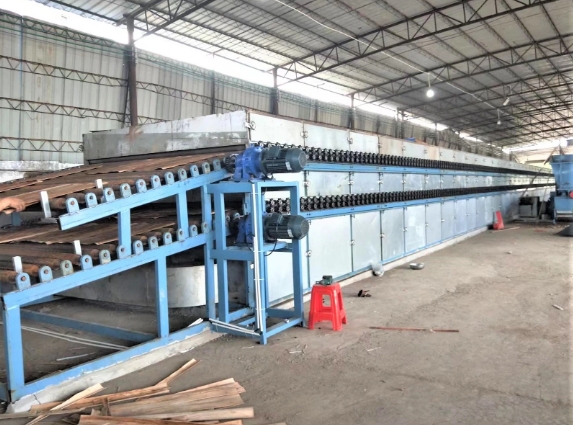

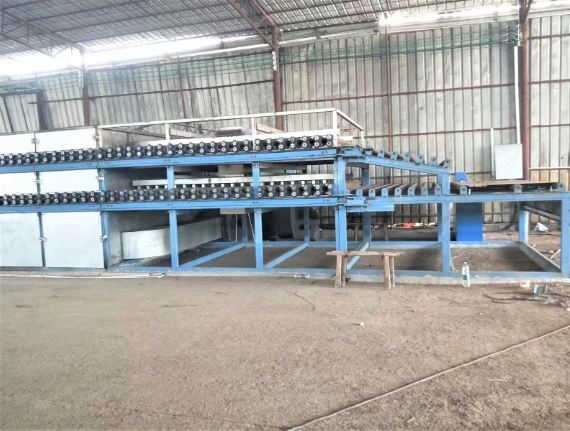

Roller type veneer dryer. This type best working thickness is above 1.5mm, it is mainly used for core veneer drying. The core veneer will go through two rollers space, and the roller will press and drive the veneer moving, it will make the veneer more flat after drying. Roller type veneer dryer is suitable high capacity factory, the drying length and layer quantity are all customized according to customers' capacity request and workshop size. If your daily capacity is bigger than 50cbm,it would be better to choose roller dryer.

Model No

GTH30-56

Working Width

3000mm

Deck

2

Roller material

Q235B, φ89 steel pipe

Heating area length

52m

Cooling area length

4m

Wood Species and Veneer size

Rubber wood 1270*640mm

Veneer thickness

1.8-2.2 mm

Veneer water moisture

Fresh veneer about 90% to about 0-15%

Heating material & drying temperature

Waste wood, 140-180℃ adjustable. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.

Drying capacity (m³/24h)

80-100 cbm

Veneer transport speed

5-22m/min,16A chain

Hot air blower

Power: 5.5KW(13pcs)

Traction motor

Power: 7.5KW,frequency control(2pcs)

Cold air blower

Power: 5.5KW(1pc)

Air intake fan

Power : 15KW(2pcs)

6 ton biomass burner

Power: 16.5KW

Total power

138.5KW

Actual electricity consumption

about 80kwh per hour

Space covered about

61M X 9M X 3M

Total weight

Around 110 tons

Containers

40FT HQ* 5

EXW Factory (with tax included)

RMB 1,324,500.00

Note: The water source, power source, exhaust pipe for the air intake fan(chimney), circulating water tank for biomass burner, refractory bricks as well as the installation tools are not in the scope of supply and the buyer should prepare them by oneself.

  1. Roller: Selec φ89mm special shaft pipe, wall thickness 3mm, roller center spacing is 180mm.
  2. Jet box: Adopt high-quality GB standard galvanized rectangular tube.
  3. Insulation board: The side insulation board has a thickness of 60mm, the panel is 1.2mm galvanized sheet, and the lining is aluminum silicate blanket. The top insulation board has a thickness of 75mm and is lined with rock wool composite board.
  4. Sinoeuro veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
  5. The well-developed heat exchange system adopts the step by step heat transfer, and the specifications of each section of the heat exchangers are different. And the hot air in the heat exchanger can be uniformly emitted to the veneer. It fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.
  6. Traction motor: Domestic high-quality electromagnetic speed-regulating motor and speed-regulator.
  7. Electric control system: The main electrical components are all seleced from domestic brands, the control cabinet layout is reasonable, the appearance is beautiful, and the operation is convenient

8. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

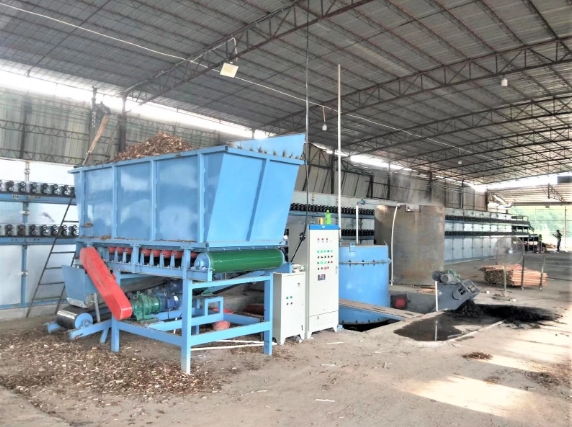

9. The biomass burner, a patented product independently developed by our company, can directly use crushed tree bark as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

10. The hot air blower and the cold air blower of the dryer use the latest axial flow fan 5.5kw, which reduces the power consumption and greatly reduces the power of 35% of the whole machine. It not only fully guarantees the required air volume for drying, but also reduces the total installed power, thus minimizing the electricity consumption of the entire equipment.

11.We have a professional R&D team which can design different models according to customer's special requirement.

Electricity consumption

about 80 kwh per hour

Dry waste wood consumption

10-12 tons per day

Labor cost

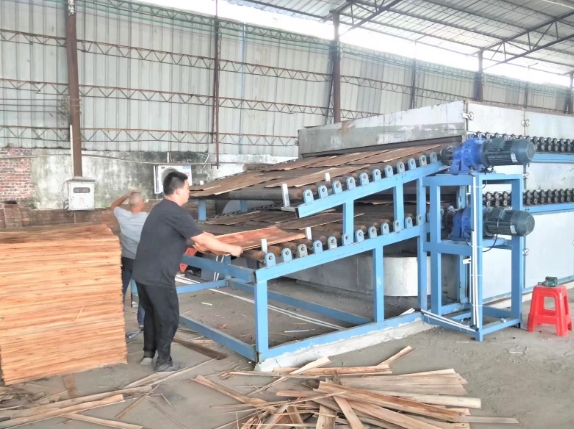

Need 5 persons per shift(veneed infeed 2 persons, veneer collection 2 persons, biomass burner and lift trucks, 1 person.)
