Plywood core veneer dryer roller veneer dryer for plywood making line continuous dryer

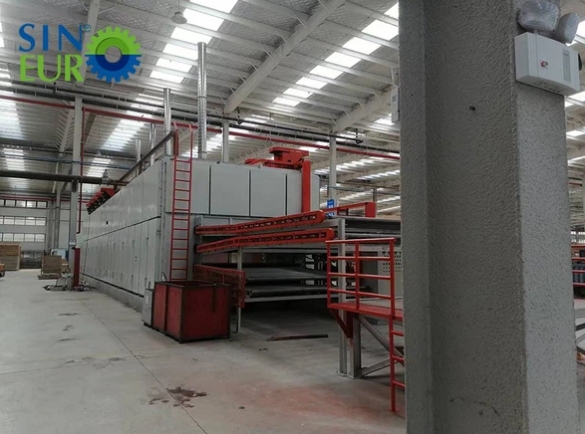

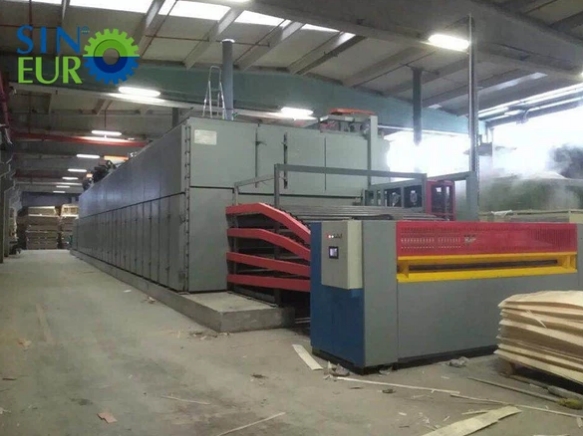

Roller type veneer dryer. This type best working thickness is above 1.5mm, it is mainly used for core veneer drying. The core veneer will go through two rollers space, and the roller will press and drive the veneer moving, it will make the veneer more flat after drying.
Roller type veneer dryer is suitable high capacity factory, the drying length and layer quantity are all customized according to customers' capacity request and workshop size. Of course, this roller dryer price is also higher compare with other models core veneer dryer, so it is good choice for high quality core veneer.
|
model Technical parameters |
BG1332-12+1 |
REMARK |
|
Working width mm |
2800mm |
|
|
Working layers |
2 |
|
|
Length of heating section mm |
12×2000mm=24000mm |
|
|
Length of cooling section mm |
1×2000=2000mm |
|
|
Total power kw |
108kw |
|
|
Transport motor kw |
7.5kw×2=15kw |
|
|
Heating motor kw |
7.5kw×12=90kw |
|
|
Cooling motor kw |
3kw×1=3kw |
|
|
Veneer transportation speed m/min |
1.5~15 |
|
|
Heating medium |
Saturated steam |
Heat conduction oil |
|
Saturated steam pressure mpa |
0.6~1.0 |
|
|
Drying temperature ℃ |
140~160 |
160~190 |
|
Steam consumption kg/h |
2700 |
|
|
Or oil kcal/h |
1,600,000 Kcal |
|
|
Veneer density kg/m³ |
~590 |
|
|
Available veneer thickness mm |
1.5~4.5 |
|
|
Veneer initial moisture content % |
60 |
|
|
Veneer final moisture content % |
10±2 |
|
|
Load ratio % |
85 |
|
|
Drying capacity m³/h |
～2.4 |
|
|
Roller spacing mm |
333 |
|
|
Overall dimension(L*W*H) mm |
36120×4450×2800 |
With auto feeding |
|
Total weight kg |
～56,000 |
