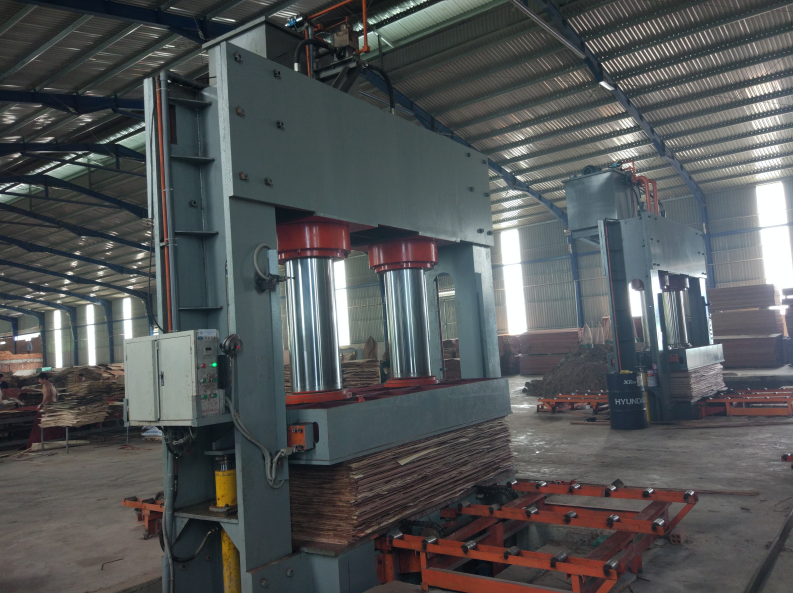

Click the picture to view the original image
|
Machine name |
Plywood LVL Cold Press Prepress Machine |
|
Machine model |
FMBJ814X8/4-I |
|
Normal gross presssure |
4000KN/400Ton(Accept Customized) |
|
Panel in-feeding direction |
Horizontal |
|
Max. opening distance |
1800mm |
|
Working platform dimension |
1400 x 2700mm |
|
Plunger oil cylinders diameter |
320mm |
|
Plunger oil cylinders quantity |
2Pcs |
|
Allowed pressure |
≤26Mpa |
|
Stoke of plunger oil cylinder |
1000mm |
|
Position of plunger oil cylinders |
Upside(Press to downside) |
|
Unit pressure |
12.3kgf/cm2 |
|
Final finished panel size |
1280 x 2560mm |
|
Flowing of plunger oil cylinders |
14L/min |
|
Allowed pressure |
≤25Mpa |
|
Motor power |
7.5Kw |
|
High pressure pump flowing |
14L/min |
|
Allowed pressure |
≤21Mpa |
|
Motor power |
5.5Kw |
|
Panel chains conveyor motor power |
2.2Kw |
|
Machine overall dimension |
36004100x4220mm |
|
Thickness of upside and lowerside crossbeam |
1000mm, 900mm |
|
Thickness of uprights |
400mm |
|
Thickness of steel frame of upside and downside crossbeam |
35mm |
|
Machine working voltage |
380V/50Hz/3P(Can accept customized) |
|
Machine frame |
Composited frame |
|
Machine color |
Customized |
|
Machine electric brand |
Schneider |
|
Machine plunger oil cylinders brand |
WUXI |
|
Hot platens/daylights brand |
KUNSHAN |
