Machine name |

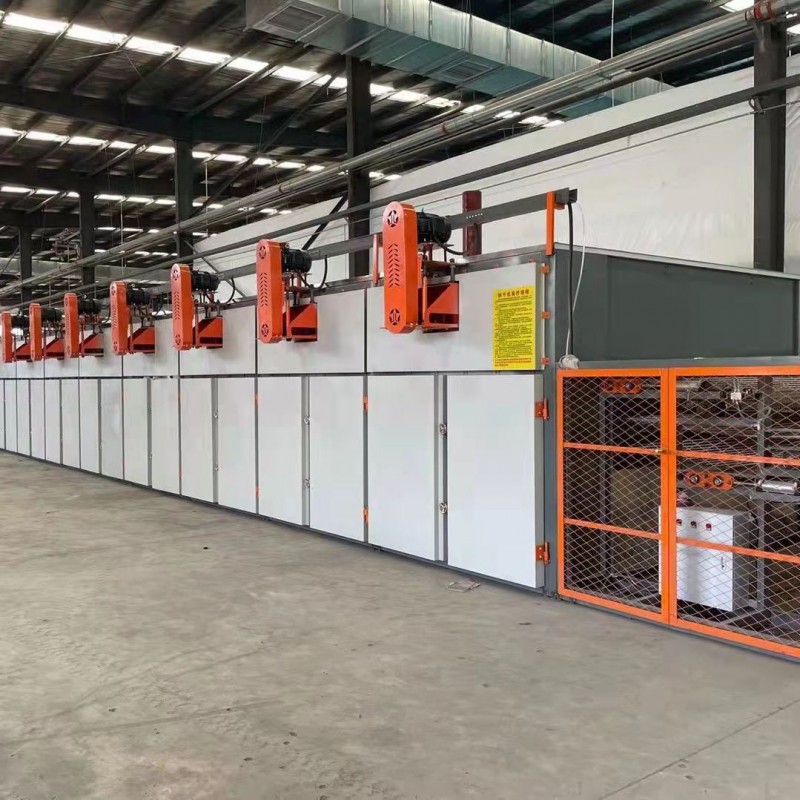

Stainless steel mesh veneer dryer machine |
|
Machine model |
FMBHG48/3-24 |
|
Drying veneer thickness range |
0.3-0.8mm |
|
Veneer density |
500-550kf/m3 |
|
Veneer initial moisture before drying |
40-70% |
|
Veneer final moisture after drying |
8%-12% |
|
Drying capacity |
44000sheets(4x8feet)/day |
|
Dryer working width |
2700mm |
|
Dryer working layers |
3Layers |
|
Dryer heating chambers length |
2000 x 12 = 24000mm |
|
Dryer cooling chambers length |
2000 x 1 = 2000mm |
|
Veneer in-feeding section length |
8000mm |
|
Veneer out-feeding section length |
9000mm |
|
Veneer transport speed |
1-40m/min(speed adjustable) |
|
Heating medium |
Steam/Oil boiler |
|
Steam consumption |
2600Kgs/hour |
|
Drying temperature |
85-160℃ |
|
Drying capacity |
3.5-4m3/hr |
|
Radiators quantity |
12Sets(1800400x100mm) |
|
Heating blower motor power |
11Kw x 12sets |
|
Cooling motor power |
5.5Kw x 1Set |
|
Veneer transport motor power |
4Kw x 3sets |
|
Conveyor belt material |
Stainless steel mesh |
|
Veneer overall dimension |
41000 x 4500 x 2800mm |
|
Machine weight |
38800Kgs |
|
Moisture control system |
YES |
