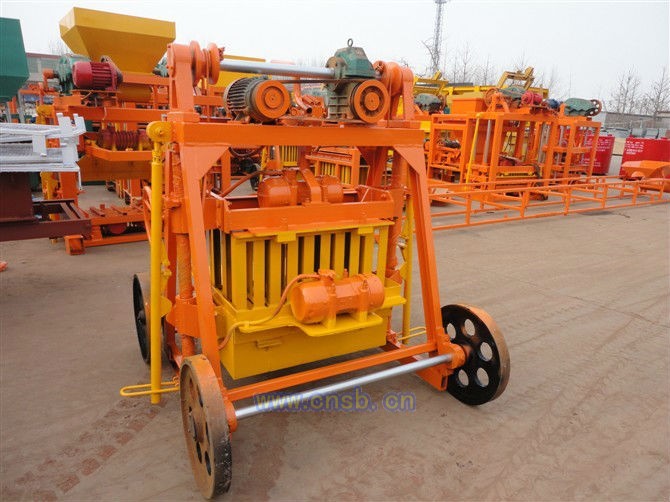

movable block making machine QT40-3B
Main features :
a) Mould vibration makes super vibration influence with small power .With the Hydraulic pressure helps raw material to be feeded and compacted adequately..
b) QT40-3B is small in dimension, but with low energy consumption and can be operated easily;
c) QT40-3B is highly efficient. Output is quite big. Its capacity can be compared with that of larger hydraulic machine
d) QT40-3B can walk freely on concrete surface, both automatically and manually, also move forward or backward;
e) There is no need to install. It can work after connecting with power;
f) QT40-3B needs no pallet, which saves investment.;
g) Saving labour: Two persons are needed in all. 1 for machine operation, and the other material mixing.
D350 Mixer for QT40--3A simple manual block making machine price on sale
|
Maim Technical Specifications |
|
|
Discharging capacity |
0.35 m3 |
|
Feeding capacity |
0.56 m3 |
|
Productivity |
≥4m3/h |
|
Max. aggregates diameter |
80mm |
|
Mixer power |
7.5 KW |
|
Diameter |
1200mm |
|
Wegiht |
0.52T |
Productivity
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr | pcs/month | |||
| (1) | 400*250*200 | 3 | 180 | 1440 | 43200 | ||
| (2) | 400*200*200 | 4 | 240 | 1920 | 57600 | ||
| (3) | 400*150*200 | 5 | 300 | 2400 | 72000 | ||
| (4) | 400*100*200 | 7 | 420 | 3360 | 100800 | ||
|
