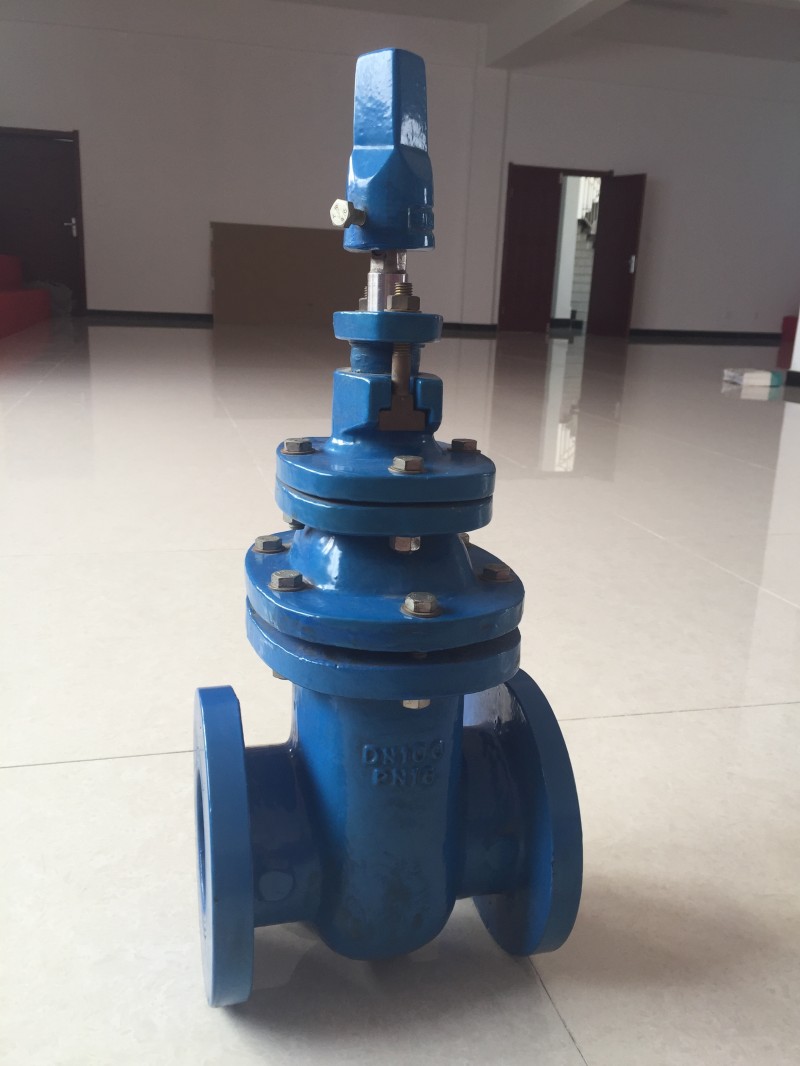

Click the picture to view the original image
Details
| MATERIALS | ||
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | SEAT | BRASS |
| 3 | WEDGE DISC | CAST IRON+BRASS |
| 4 | STEM NUT | BRASS |
| 5 | STEM | STAINLESS STEEL |
| 6 | BOLT AND NUTS | CARBON STEEL |
| 7 | GASKET | GRAPHITE |
| 8 | BonNET | CAST IRON |
| 9 | BOLT AND NUT | CARBON STEEL |
| 10 | GASKET | GRAPHITE |
| 11 | "O"RING | RUBBER |
| 12 | PACKING | GRAPHITE |
| 13 | PACKING BOX | CAST IRON |
| 14 | GLAND | CARBON STEEL |
| 15 | BOLT AND NUT | CARBON STEEL |
| 16 | HANDWHEEL | CAST IRON |
| 17 | BOLT AND GASKET | CARBON STEEL |
