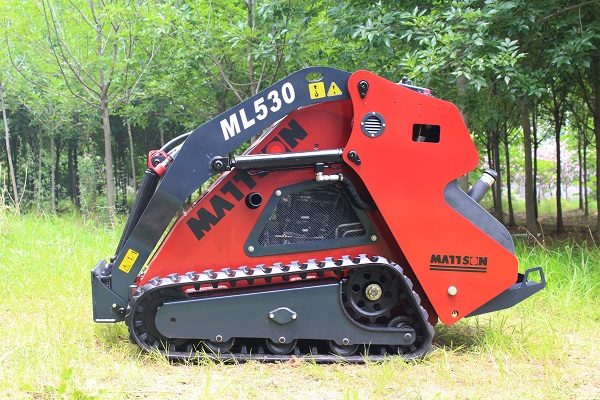

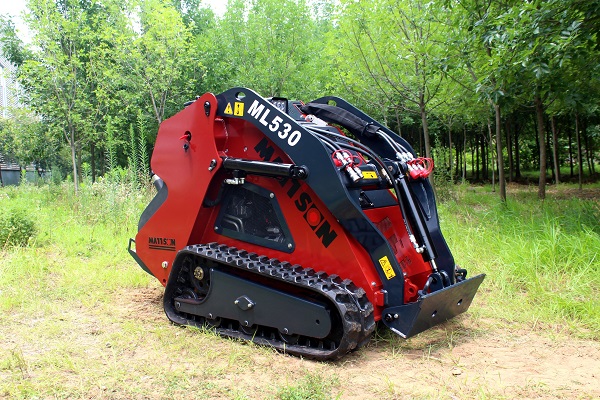

The Mattson 30HP reack skid steer loader is multi-purpose and powerful. Widely used in industrial and mining enterprises such as highway municipal administration, port and dock, animal husbandry, landscaping, construction sites, coal and electricity.
Product selling points:
1 Equipped with brand engine, strong power, environmental protection and energy saving;
2 Suitable for special occasions such as narrow spaces;
3 Many attachments to ensure stable operation of equipment;
4 Suitable for use in different working conditions on the same construction site, saving transition time and high working efficiency;
5 Operation is simple and easy to understand, daily maintenance is convenient and easy;
6 The international standard ergonomic cab is safe and reliable.
|
Model |
ML530 |
|
Operating weight |
320 kg |
|
Overall operating height |
2656 mm |
|
Engine |
YANMAR // 3TNV82A-BDSA2 |
|
Power |
30HP |
|
Bucket capacity |
0.2m³ |
|
Height to bucket hinge pin |
1879 mm |
|
Height to top |
1257 mm |
|
Minimum distance between bucket hinge point and ground |
206 mm |
|
Overall length without bucket |
1942 mm |
|
Overall length with bucket |
2603 mm |
|
Dumping angle at maximum height |
36° |
|
Dumping height |
1270 mm |
|
Dumping reach |
750 mm |
|
Rollback of bucket on ground |
23° |
|
Rollback of bucket at full height |
99° |
|
Wheelbase |
955 mm |
|
Ground clearance |
140mm |
|
Angle of departure |
20° |
|
Turning radius front with bucket |
1610 mm |
|
Ground Clearance-under platform |
180 mm |
|
Tread width,centerline to centerline |
850 mm |
|
Overall width |
1050 mm |
|
Bucket width |
1250 mm |
