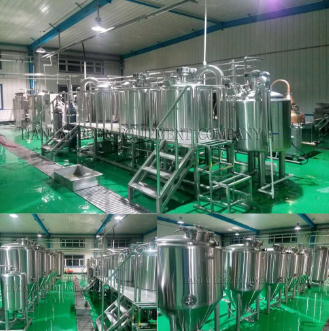

500L Customized Beer Brewery Equipment

Click the picture to view the original image
Brand: 500L Customized Beer Brewery Equipment
Price: discuss personally
Order:
Total Supply:
Area: China Shandong
Validity: forever
Information of the company


Details

·


Min. Order:1 Set

·

· Product Details

Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Place of Origin:

Shandong in China

Packaging Details:

Wooden/Veneer case for LCL ; Plastic film wrapped and iron frame fixing for FCL

Quick Details

· Processing: Other

· After-sales Service Provided: Engineers available to service machinery overseas

· Warranty: 3 Years from commissioning

· Processing: Alcohol

· Brand Name: Tiantai

· Condition: New

· Certification: CE ISO

· Processing Types: Alcohol

· Dimension(L*W*H): User Requirements

· Weight: 1~5 Tons

· Power(W): 15-70Kw depends on capacity

· Voltage: 3phase/380(220, 415,440...)

· Model Number: 500L

· Color Available: Mirror SUS, Luxury red copper

· Appearance: Stainless steel or Red Copper clading

· Heat Insulation: Polyurethane or Rockwool

· Heating: Electric/Steam/Direct fired

· Controlling System: Temperature, Pressure auto control

Specifications

1.500L Customized Beer brewery equipment Introduction

500L Customized Beer brewery equipment produced by us is a set of technological equipment for the production of "live" and filtered beer.

Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste.

If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers.

Interpreter may be faced with polished brass, copper besides stainless steel.

Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer.

this is an excellent design solution interior and a powerful marketing tool.
most installation in restaurants, bars and hotels used microbrewery with a capacity from 200 to 1000 L.

A network of restaurants uses equipment with higher capacity.

Tiantai microbreweries are installing at the customer's company turn-key.

to release a less than 200 L of beer per day is unprofitable, so the minimum performance of our equipment is 200L.

2.Specifications


Output/Brew

5HL

Brew/Week

2~6

Output/Week

10~30HL

Electric Supply

3phase/380(220, 415,440)v/50 (60)Hz
Single Phase/ 220(110, 240)v/50(60)Hz

Heating Source

Electric/Steam

Area Request

>45M2

Brewmaster

1

Note:1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

3.Configuration


(1). Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional
(2).500L Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
(3).500L or1000L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
(4). Beer Filter Unit(optional)
in restaurant or bar, beers are always served as craft beer without filtration
(5).500L or1000L Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
(6). Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
(7). Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
(8). Beer Dispense

Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption


(9). Other Facilities
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor

4.Our Service

(1). Pre-sale service:

Inquires will be replied within the hour.

Any questions about the products you asked will be answered without any reservation.
Professional quotation will be provided.

(2). Medium-sale service:

All products will be tested before delivery.
Tracking logistics information, any updats, will be feedbacked to our customer timely.

(3). after-sale service:

Any technical advisory from you will be much appreciated.
One-year product warranty period will be provided, and lifetime technical support. (welcome to contact us anytime.)


5.Our Advantages

(1). Manufacturer of craft beer brewing equipment for more than 20 years;


(2). Good quality of raw materials and mature technics of producing;


(3). Free drawing design service before order;


(4). Engineers are available to go to customer's door to guide installation and training brewing;


(5). Lifetime technology support;


(6). Brewing raw materials' supplying.


(7). We have our own brand " TIANTAI".


6.Packages & Shipping

(1). Packages suitable for delivery, basically by plastic film, wooden case or steel frame if necessary

(2). by bulk carrier or independent containers, the size and quantity rely on the configurations and capacity

(3). by train or by sea

(4). Customers' requirements of the packages are available, pls tell in advance.


7.Company Profile


Jinan Tiantai Beer Equipment CO.,LTD is a professional manufacture of beer brewing equipment. Our team has 15 yeas experience in installing our brewery systems in brewpub, bar, restaurant, microbrewery, regional brewery etc.

We have exported to USA, Canada, Korea, Japan, Russia, Australia, England, Italy, Spain, Romania, Belgium, Norway, Poland, Sweden, Serbia, Singapore, South Africa, South America etc.

Tiantai company supplies all-round service including layout design, customized equipment design, transportation, installation and training. All details take the humanity and brewmasters' intention into consideration.

Reliable quality is guaranteed by professional technical support, advanced processing equipment, strict quality control and complete personal training.

Insisting the idea that craft beer brewing should be in a popular style, we always keep our system affordable which may help more brew masters to approach their dream.

Tiantai, your honest brewery builder!
